ATSG CONFIRMED FIX - JUNE 2025
2014 Ford Escape 6F35
Complaint: No move after rebuild
Cause: Chain came off the pump gears
Correction: Replace the gears and chain
Part numbers related to the repair: 7T4Z-7G249-B
Year Make and Model of the Vehicle: 2014 Ford Escape
Mileage: NA
Shop Name: Karry Brothers
Transmission: 6F55
Additional Notes: After install the vehicle wouldn't move. The shop put a pressure gauge on it and there was no pressure. We had the shop pull the transmission and see if the chain had come off the gears. The chain was off, and during inspection also found that the gears were worn. Please note: all high mileage transmissions should have these parts replaced. Also, during assembly of the transmission it is recommended that you use the hub off the torque converter to help place the drive gear in position.

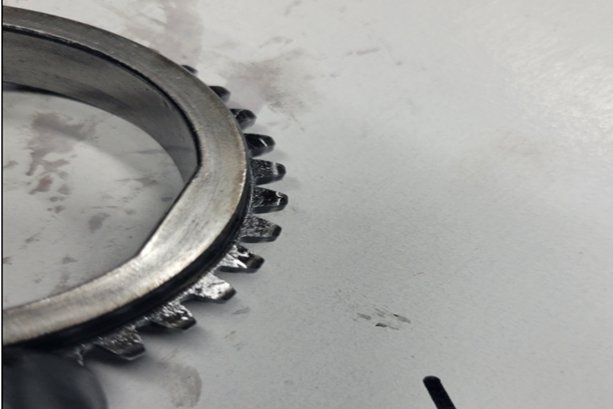

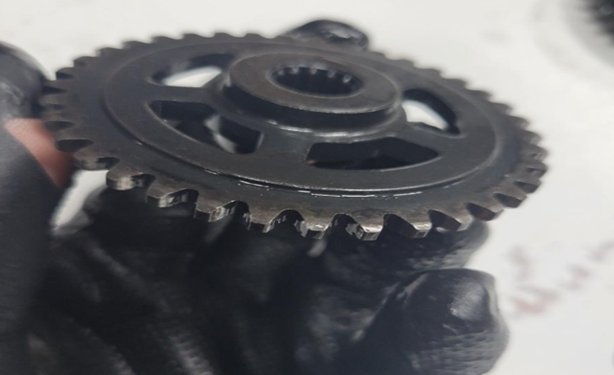

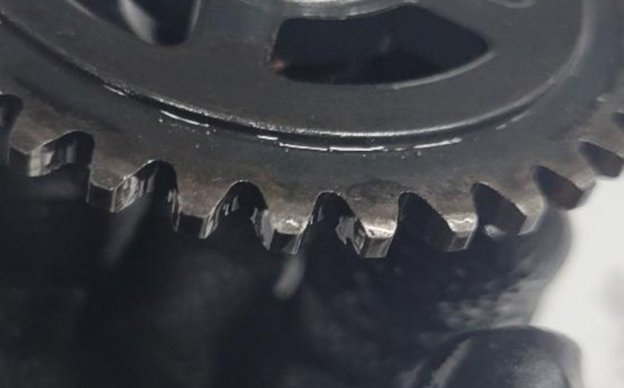

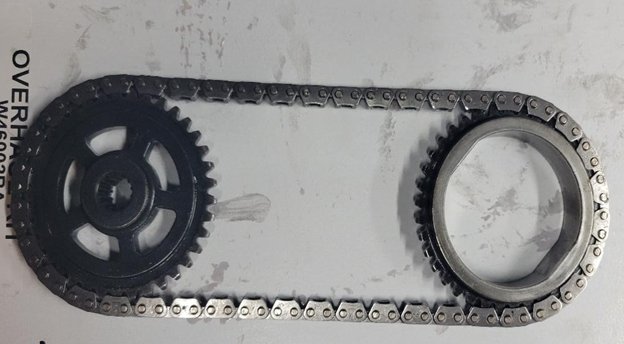

Pictures/Diagram: See included images
