ATSG CONFIRMED FIX - JUNE 2024
2016 Chevy 2500 Van 8L90
Complaint: No cooler flow after rebuild
Cause: Missing the number 7 check ball
Correction: Install the number 7 check ball
Part numbers related to the repair: N/A
Year Make and Model of the Vehicle: 2016 Chevy 2500 Van
Mileage: N/A
Shop Name: Fairfield Automotive
Transmission: 8L90E
Additional Notes: Beginning in 2016 the number 7 check ball was eliminated, also the Lube Override Enable Valve was removed. Always check and see if the Lube Valve is present to determine if the number 7 check ball should be in the Valve Body or not, it appears that some of the early 2016 valve bodies must have still had the valve and check ball in them.

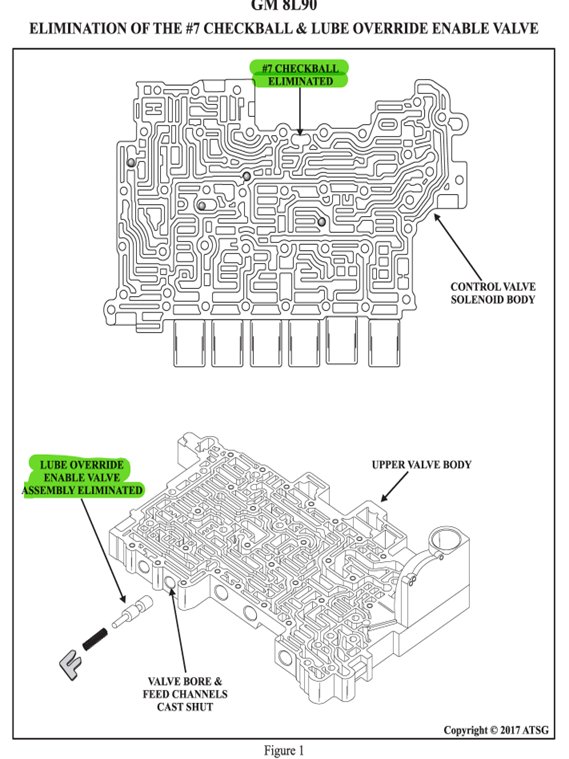

Pictures/Diagram: Check the attached picture the shows the valve and check that it was eliminated.
