ATSG CONFIRMED FIX - APRIL 2024
2016 Toyota Tundra A760E
Complaint: After Rebuild, slight bind going into 3rd and neutrals going into 6th gear.
Cause: crossed connected the SS2 and SS3 solenoids.
Correction: Reconnect in the proper locations.
Part numbers related to the repair: NA
Year Make and Model of the Vehicle: 2016 Toyota Tundra
Mileage: NA
Shop Name: Fairview Transmission
Transmission: A760E

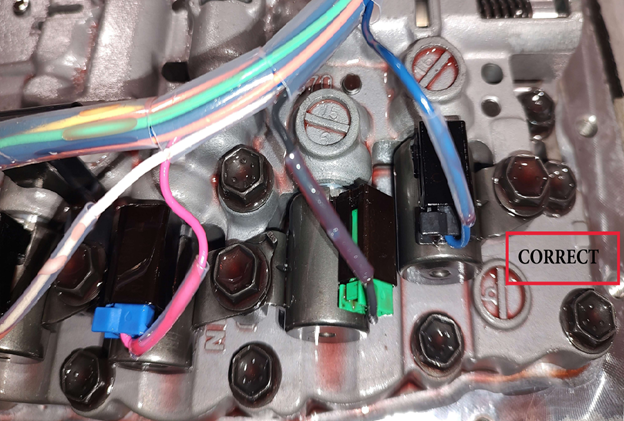

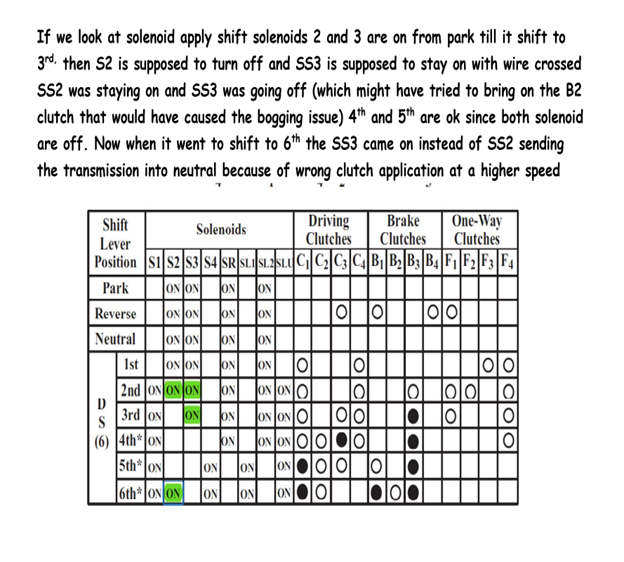

Additional Notes: Shop tech swapped 2 of the solenoid connectors, which was causing the complaints shown above. Pictures below demonstrate the incorrect and correct locations of the 2 connectors. Also, see the chart below That shows the solenoid and clutch applications with a summary of what would take place if the solenoids were crossed.
Pictures/Diagram: Found below
